OSV HT-120
Hybrid Dual Monoblock Integrated Amplifier

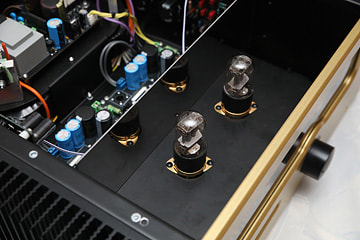

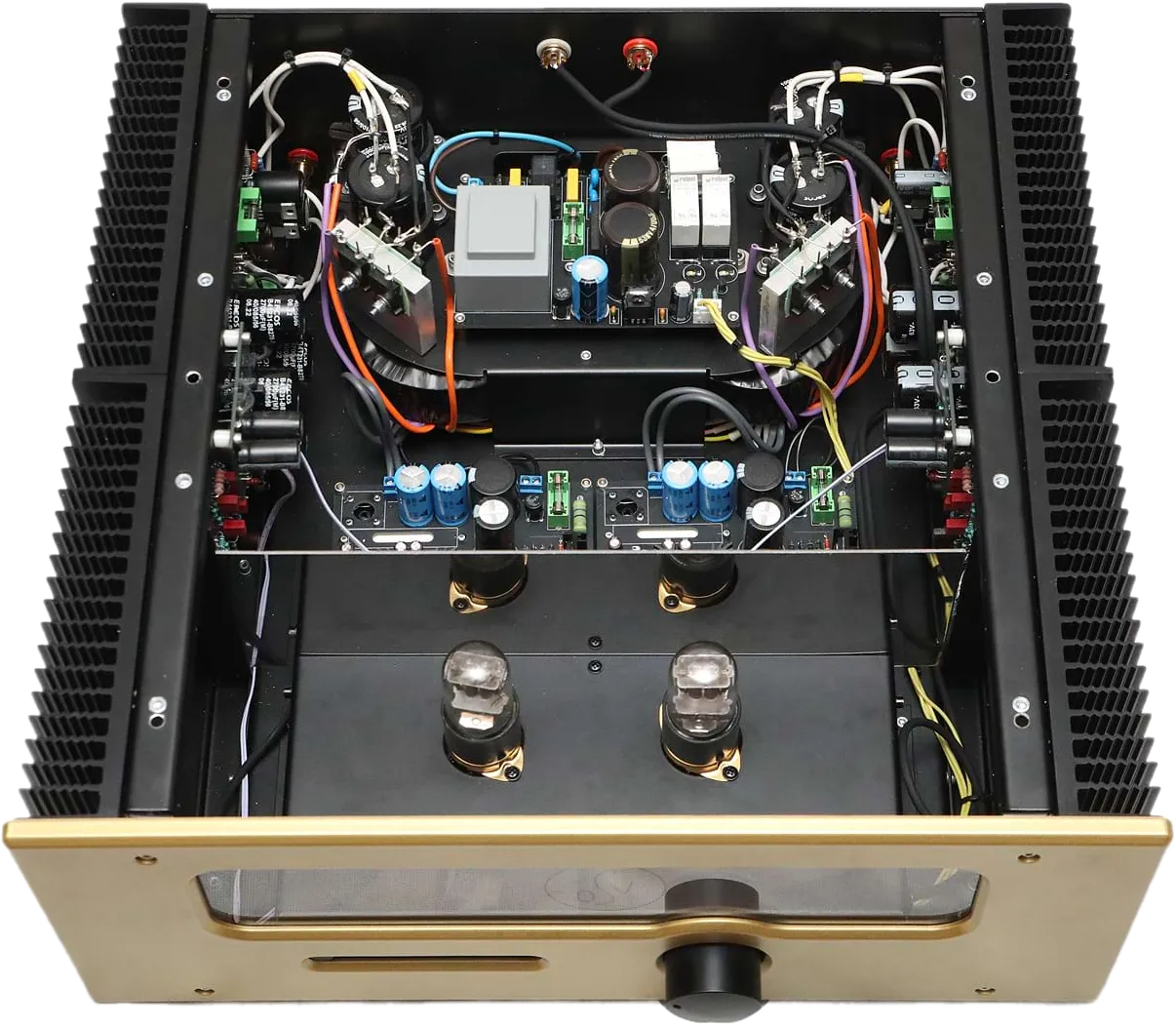

Introducing the HT-120, a hybrid stereo amplifier that effortlessly blends the warmth of tubes with the precision of solid state power amp. This is dual monoblock design features a preamplifier stage with 2 x 6SL7 tubes, offering a class A experience. The custom-designed SRPP stage ensures a smooth and natural sound. With high-end coupling capacitors from Jantzen Audio, AC voltage filtered by a DC blocker, and mutual modules for optimal performance, the HT-120 guarantees an exceptional audio journey. It has two separate 300 Watt toroidal audio transformers, stabilised heating, and anodic voltage, it delivers 2 x 120W RMS @ 8 Ω and 2 x 180W RMS @ 4 Ω. Optional Bluetooth connectivity adds modern convenience to this timeless piece.
Technical specification
Type | Hybrid stereo amplifier(dual monoblock). Preamplifier

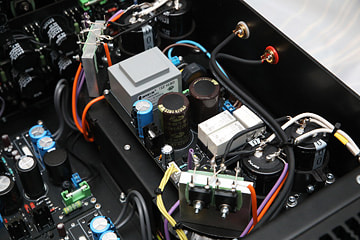

stage: tubes, class A, 2 x6SL7 Final stage: Bipolar configuration, class AB Preamp: custom designed SRPP stage High-end coupling capacitors Jantzen Audio Superior Z-Cap AC voltage filtered by a DC blocker for the best performance Mutual modules: emi mains filters, dc blocker, digital management. Two separate 300 Watt toroidal audio transformers Separated: stabilised heating and anodic voltage for each preamp, power supply for power |
Output Power | 2 x 120W RMS @ 8 Ω, 2 x 180W RMS @ 4 Ω |
Max input voltage | 5V RMS |
Input sensitivity | 0,7VRMS |
Input impedance | 50K |
Power Factor | 600va |
Connections | |

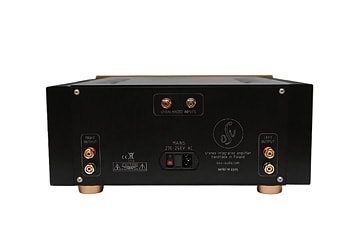

Analogue inputs | 1-3 unbalanced RCA line |
Optional inputs | Bluetooth |
Dimensions | |
Amplifier | 430mm (D) x 435mm (W) x 185mm (H) |
Weight | 25Kg |
